Standard Hop Overs

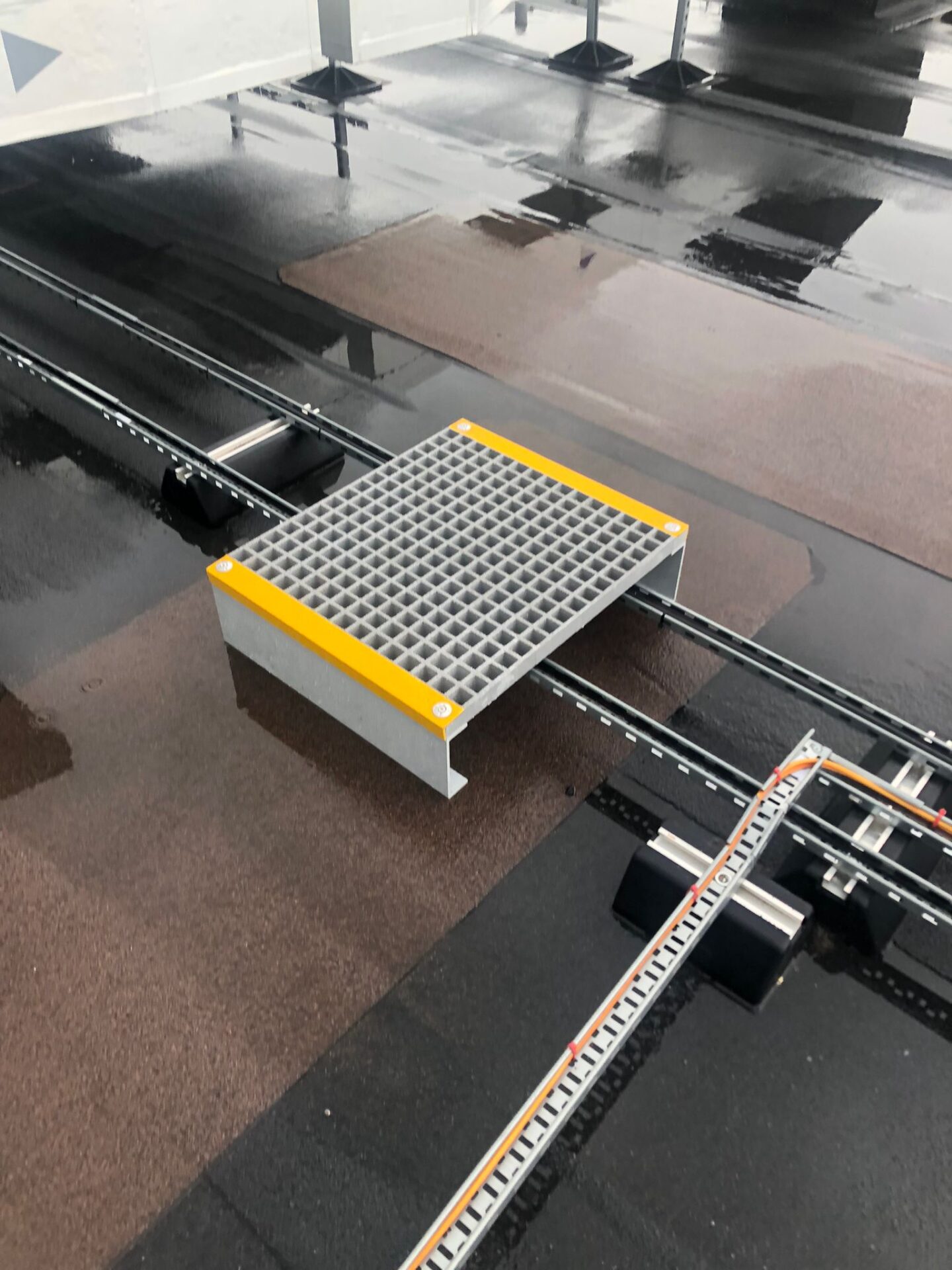

Two small hop overs going over pipes

Standard Hop Overs

For a fast, fuss-free solution we can build a Standard Hop Over and supply it for you to install. We offer a range of spans and heights; simply measure the obstacle and select the model that will clear it. Made to order, delivery is normally within four weeks.

Read full description

From £349.00 (exc VAT)

Any questions? Contact us

Description

A Standard Hop Over not only reduces trips, slip and falls, it prevents pipes and cables from being damaged. For a simple access solution, choose one of our Standard Hop Overs and we’ll supply it fully fabricated and ready for you to install. We offer a range of sizes designed to clear obstacles up to 200mm high with a span of up to 1000mm. Our Standard Hop Overs are made using Universal GRP Profiles and 38mm grey QuartzGrip® Open Mesh Grating with yellow nosing.

  • Built from 38mm GRP Anti-Slip Open Mesh Grating
  • Supplied fully fabricated
  • 800mm wide
  • Long-lasting GRP will never rot or corrode and requires zero maintenance
  • Chemical resistant, non-conductive and low noise
  • Ideal for roof top use – GRP is lighter than steel equivalents
  • To install, simply bolt the feet to the floor using the fixings provided

If you’d prefer a bespoke size or colour please get in touch.

Span and height refer to the space below the Hop Over; choose the size that will easily clear the obstacle you need to traverse. Overall dimensions indicate the total space required for the structure. Please ensure there is space to allow easy access and that there is enough headroom above the platform for people to walk across.

Span Clearance Overall Length Overall Height Overall Width
HO-05-15-GY 500mm 150mm 600mm 188mm 800mm
HO-10-05-GY 750mm 150mm 850mm 188mm 800mm
HO-15-05-GY 1000mm 150mm 1100mm 188mm 800mm
HO-05-10-GY 500mm 200mm 620mm 238mm 800mm
HO-10-10-GY 750mm 200mm 870mm 238mm 800mm
HO-15-10-GY 1000mm 200mm 1120mm 238mm 800mm
