SafeSlabHD™ Interlocking GRP Panels

SafeSlabHD™ Interlocking GRP Panels

SafeSlab Logo
  • HEAVY DUTY
  • SEAMLESS FINISH
  • SLIP RESISTANT

The cost-effective solution for heavy duty commercial, industrial, marine and rail environments that require a solid finish.

Read full description

£631.70 (exc VAT)

Any questions? Contact us

Description

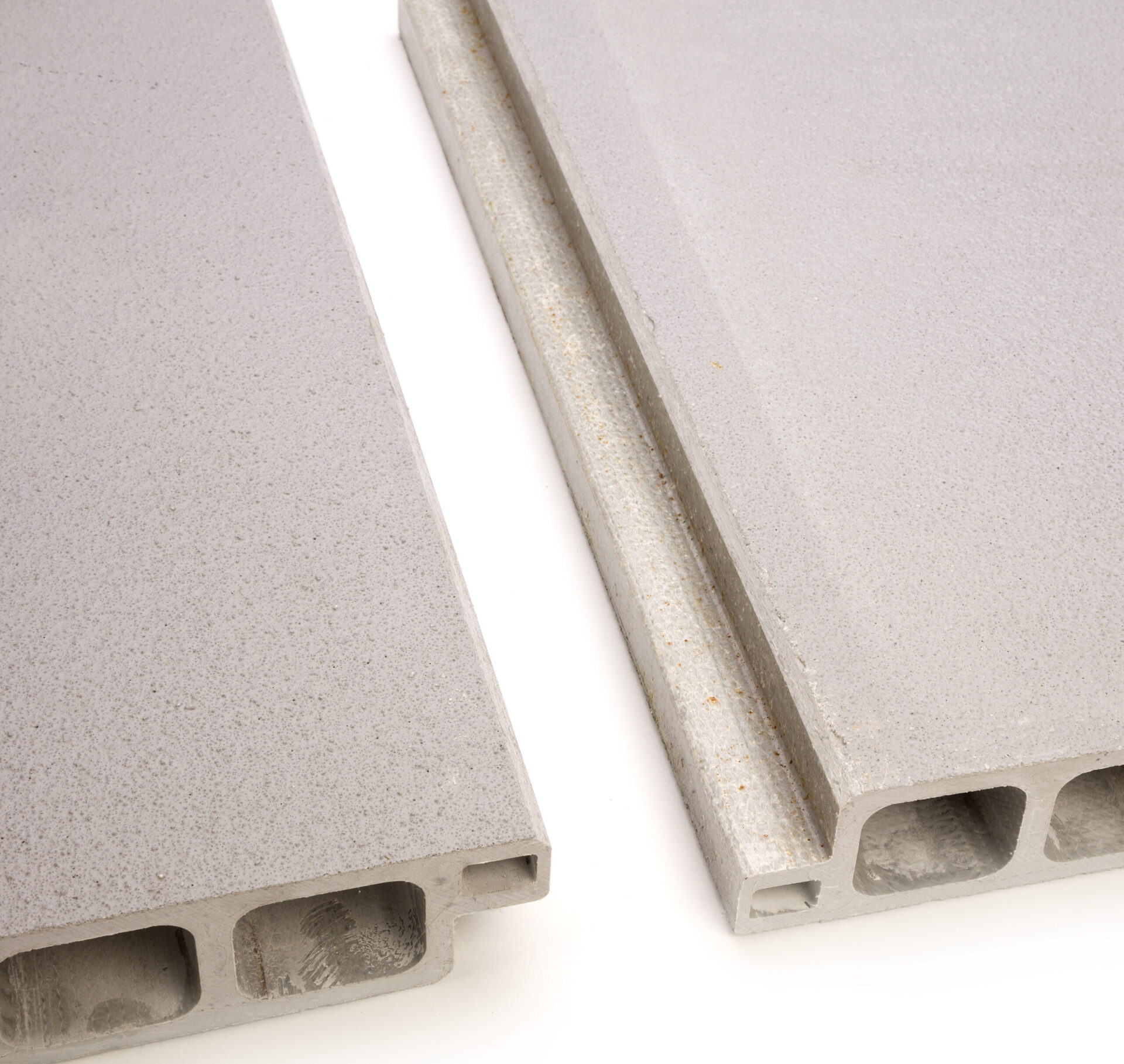

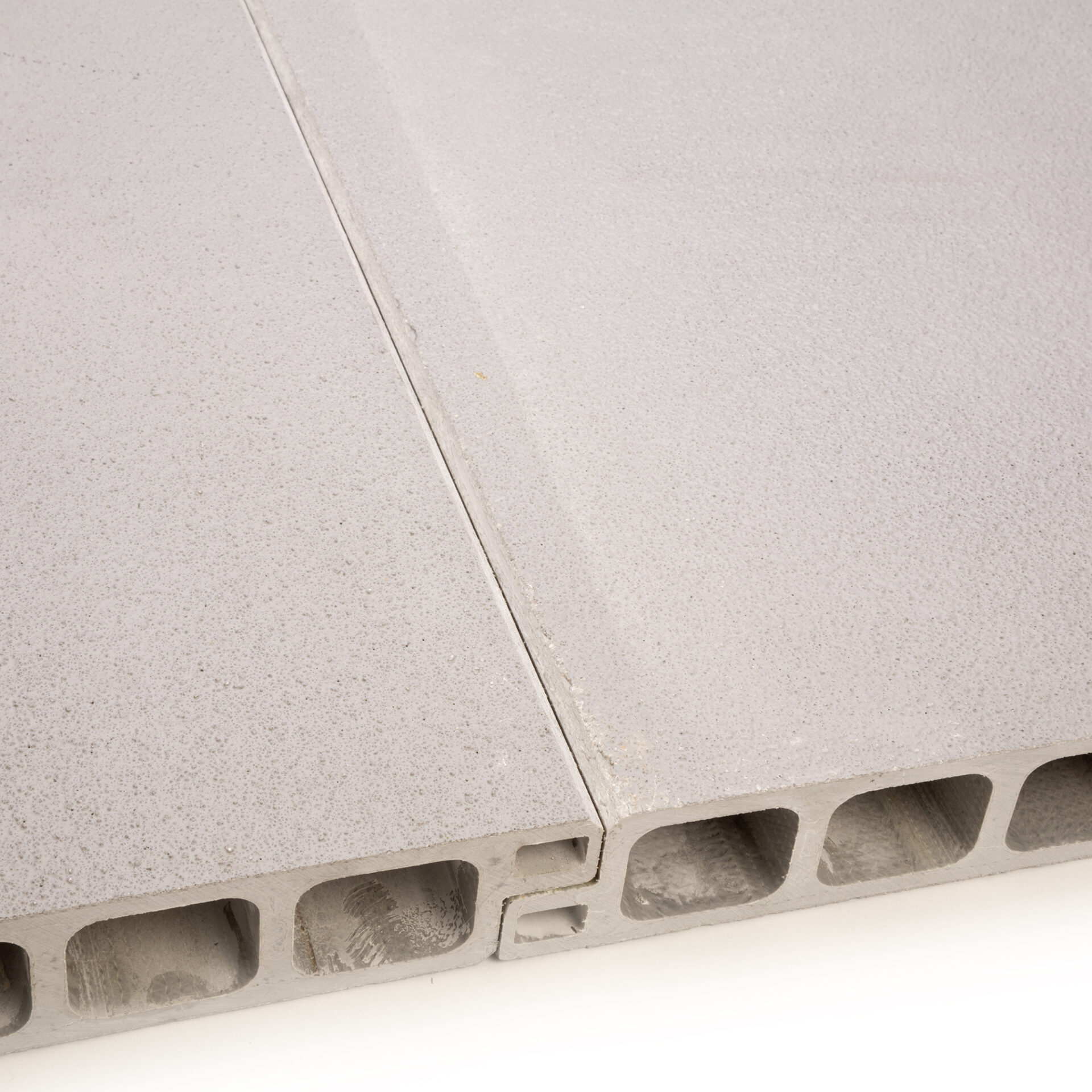

SafeSlabHD interlocking GRP Panels are fast becoming the cost effective solution for light and heavy duty environments that require a solid finish. Suitable for a variety of heavy duty commercial, industrial, marine and rail applications, the interlocking edges ensure a seamless fit that can be made water-resistant by adding sealant. It can also keep unpleasant odours to a minimum so is commonly used in Waste Water Treatment sites. Can be manufactured to suit BS 124 specifications (Class B125 and C250 vehicular ratings).

Manufactured using a pultrusion process, stock panels are 50mm thick but available to order 100mm thick. Alternate between Top Grit and Bottom Grit SafeSlab panels to create a solid, continuous non slip surface suitable for pedestrian and vehicular traffic. Add a sealant strip to make it water resistant to protect the contents of the trench or gully below. For GRP fixings click here.

Benefits of Interlocking GRP Panels:

  • Anti-slip
  • Keeps odours to a minimum
  • No gaps (ideal for high-level walkways)
  • High strength
  • Lightweight
  • Low maintenance
  • Fire retardant
  • Corrosive resistant
  • UV stable
  • Chemical resistant
  • Anti-static
  • Non Conductive

Colours
Step on Safety manufacture the Pultruded Structural Panels in Grey RAL 7004. However any RAL colour is available although minimum order quantities apply.



Physical Data

Panel Depth (mm)

Panel Width (mm) Panel Length Resin Base Weight (kg/m2) Surface Finish

50

475 3660 ISO 36.5 Gritted/Smooth

100

600 To order ISO 77 Gritted/Smooth

Load/Deflection Data

SafeSlabHD Interlocking Solid Top Panels

Unsupported Span (unfixed)

Thickness

Self-weight Deflection Load Type 600 1000 1200 1500 2000 2500
50 36.5 1.5% (L/300) UDL (kg/m2) 2000* 8100* 4200*

2500

1030 530

50

36.5 3.0% (L/300) UDL (kg/m2) 16900 4000 2100 1200 520 260

100

77 1.5% (L/300) UDL (kg/m2) 51000 30600 24500 20400 9300

4900

100 77 3.0% (L/300) UDL (kg/m2) 51000 30600 17600 10600 4700

2400

*Meets BS EN 124:B125 (5T Rated) up to 1200mm span

†Meets BS EN 124:C259 up to 600mm span

Network Rail Standard Maintenance/Pedestrian Loading

Thickness

Self-weight Deflection Class 600 1000 1200 1500 2000 2500

50

36.5 3.0% (L/300) 5kN/m2 Pass Pass Pass Pass Pass

-

100 77 3.0% (L/300) 5kN/m2 Pass Pass Pass Pass Pass

Pass
