SafeLine GRP Cable Ladder

Sold Out

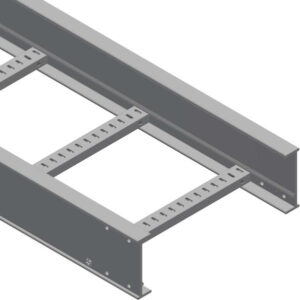

Graphic of 450mm GRP Cable Ladder

SafeLine GRP Cable Ladder

SafeLine logo
  • NON-CONDUCTIVE
  • LOW-MAINTENANCE
  • LIGHTWEIGHT & DURABLE

For effective heavy duty cable management, our GRP Cable Ladders are 150mm deep and available in a range of sizes

Read full description

From £164.66 (exc VAT)

Any questions? Contact us

Description

For effective heavy duty cable management, our GRP Cable Ladders are 150mm deep and available in a range of sizes. For smaller projects see our Cable Tray System.

  • Standard widths range from 150-900 mm
  • Suitable for use with high voltage cable cleats and tubing clamps
  • Flexible rung attachment allows additional rungs to be installed (ask for details)
  • Ladder siderail has unique off centre side C-profile for increased load capacity
  • No risk of liquid entrapment
  • GRP will not rot or corrode and requires zero maintenance
  • Rung widths and rung spacing can be customized to project requirements on application
  • Pre-drilled, full height splice connectors can handle the same loadings as the ladder system itself
  • Roll edges for easy handling, reduced cable snagging and aids stability to reduce rung movement

Our GRP Cable Ladders are part of a large system which includes covers, corners and risers. For more information please get in touch.

Composite Cable Ladder System with 150 mm rail height, certified to Nema 16B according to Nema FG-1 standard.

Cable Ladder

 Length Internal Width External Width Internal Height External Height Wall Thickness Weight SWL (3m)

150mm

 3000mm 150mm 176mm 119.7mm 150mm 5mm 14.6kg 402kg/m

300mm

 3000mm 300mm 326mm 119.7mm 150mm 5mm 15.7kg

402kg/m

450mm

 3000mm 450mm 476mm 119.7mm 150mm 5mm 16.6kg

402kg/m

600mm

 3000mm 600mm 626mm 119.7mm 150mm 5mm 17.9kg

402kg/m

750mm

 3000mm 750mm 776mm 119.7mm 150mm 5mm 18.7kg

402kg/m

900mm

 3000mm 900mm 926 119.7mm 150mm 5mm 19.8 402kg/m

Loading data according to IEC61537. The length of the end span must be reduced to 3/4 of the support spacing and with no splices on the end span.
